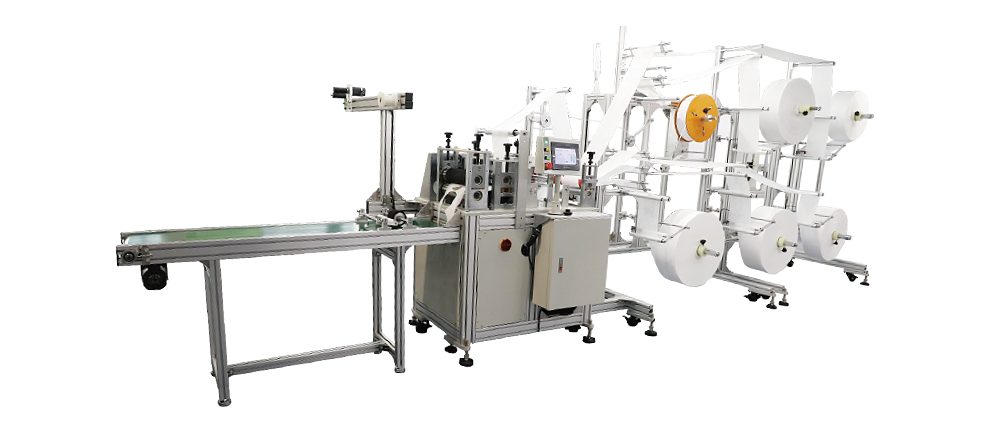

SP-K1-01 3 Layers Mask cutting machine
Automatic feeding, folding, press to shape, build-in nosepin, cutting, full-automatic operation. Efficiency over 100pcs/min
Performance advantage
- Servo control system improves efficiency and decrease defect
- Feeding by roll improves accuracy of position, minimizes width of material and saves cost
- Speed is adjustable by alternative-frequency
- Automatic counting, tolerance +/- 1mm, uniform size, controllable length

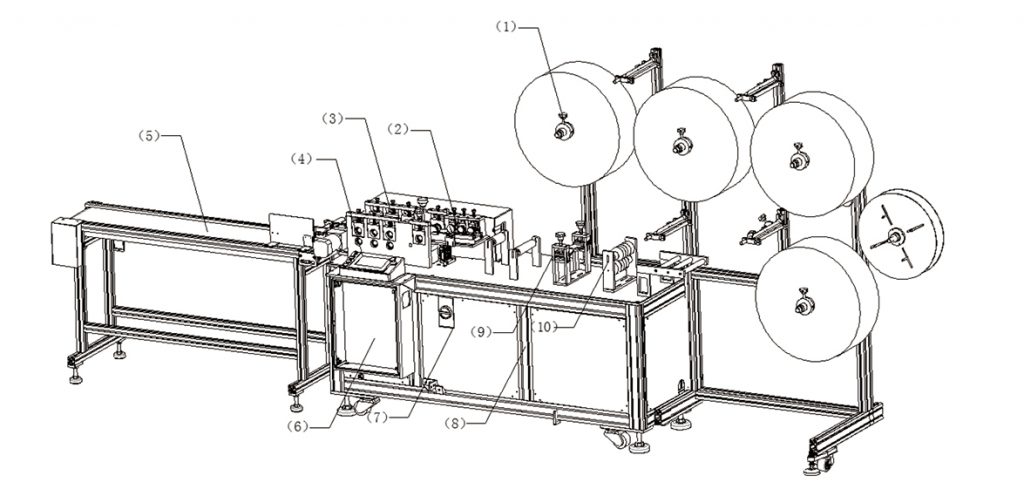

Structure
- Material roll
- Nosepin roll
- Cutting mechanism
- Screen mechanism
- Collection mechanism
- Electrical box
- Power
- Machine frame
- Folding plate
- Folding wheel

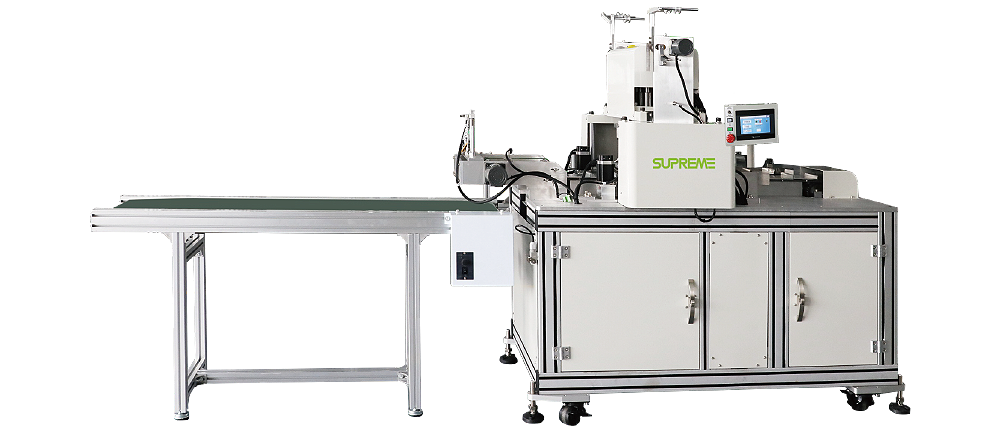

SP-K1-02 3 Layers mask ear loop machine
Automatic loading, feeding, 4 points one time ultrasonic welding, automatic collecting. Efficiency up to 50pcs/min
Features
- Servo control system improves efficiency and decrease defect
- Automatic loading system, no need by manual
- Automatic counting visible system
- Ultrasonic welding, 4 points welding complete in one time

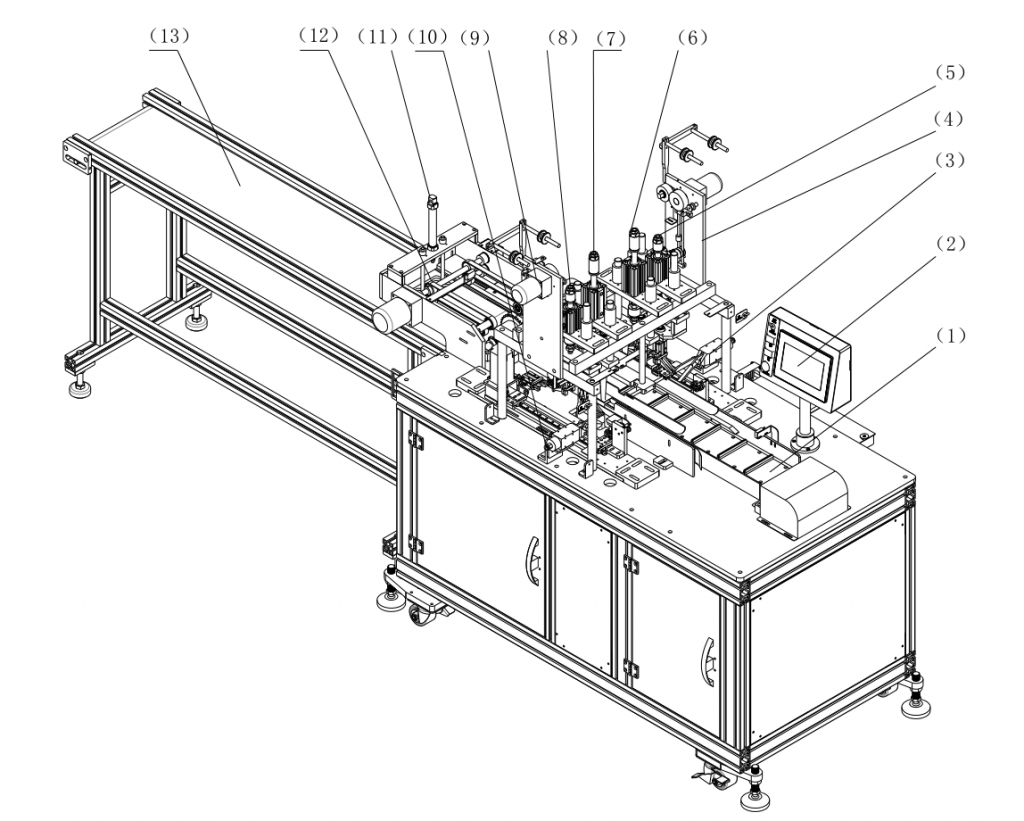

Structure
- Positioning mechanism
- Operation Panel
- Right cutting mechanism
- Right Ear strap
- Right clip ear with rotating mechanism
- Right ultrasonic mechanism
- Left ultrasonic mechanism
- Left clip ear with rotating mechanism
- Left Ear strap
- Left cutting mechanism
- Stacker
- Upper stacker mechanism
- Lower stacker mechanism
SP-KN-01 Cutting Machine
Automatic feeding ,press to shape ,build-in nose bridge, left-right cut, waste material collection -full automatic operation .80 pcs/min
Features
- Servo control syetem improves efficiency and decrease defect Feeding by roll improves accuracy of position ,minimizes width of material and saves cost
- Speed is adjustable by alternative – frequency
- Automatic counting ,tolerance +/- 1mm, uniform size ,controlable length

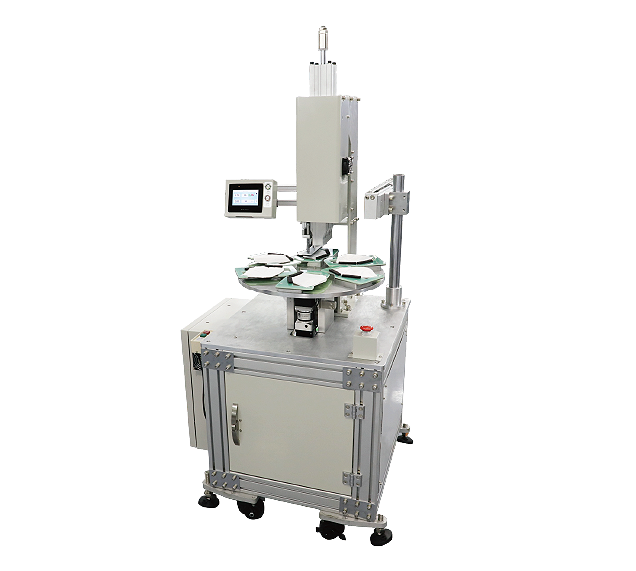

SP-KN-02 KN Sealing Machine
Rotating feeding with six positions ,ultrasonic sealing on left&right opening,automatic collection. 30 pieces/min
Features
- Servo System stablizes device ,low defect
- Ultrasonic Sealing strenghthen the tightness
- Rotating feeding improves effeciency manual position ,feeding with improved effeciency
- Auto-counting and sealing mould positioning
Structure
- Ultrasonic Mechanism
- Operation Panel
- Mask Position Mechanism
- Rotating working station
- Collection Mechanism

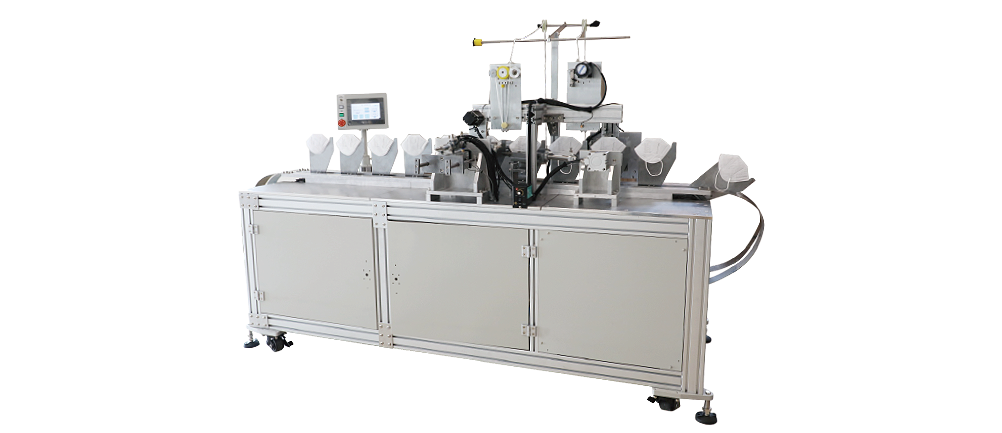

SP-KN-03 KN Earloop Welding
Automatic feeding ,ultrasonic welding and automatic collection in one time ,30pieces/mir
Features
- Servo system improves stability ,low defect
- Auto-counting controls productivity effeciency and process
- Accurate earloop position and ultrasonic four points welding
Structure
- Mask Positioning
- Earlooop rotating mechanism
- Earloop threading
- Feeding plate Position
- Earloop Threding
- Earloop Cut
- Earloop Rotating
- Ultrasonic pushing mechanism
- Ultrasonic mechanism
- Feeding Plate position
- Earloop cut mechanism
- Ultrasonic mechanism
- Ultrasonic pushing mechanism

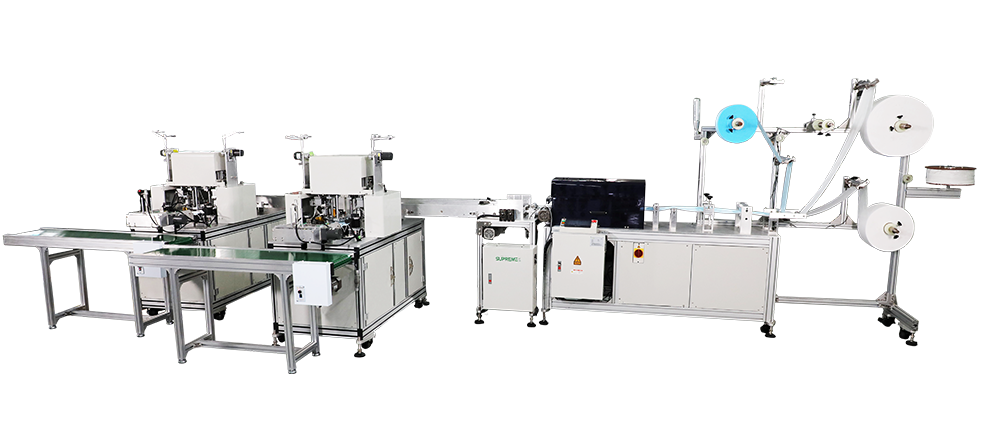

SP-K1-04 Disposable mask machine 1+2 model
One disposable face mask slicer machine matches to 2 sets of ultrasonic earloop welding machines, the whole process automatically controlled,piece formed, nose pin mounted, ultrasonic ear loop welded, collector counting, identifying and supplying mask pieces automatically to 2channels, finished face mask off the production line once time. productivity 100-120pcs per minute
Features
- Servo control system improves efficiency and decrease defect
- Feeding by roll improves accuracy of position, minimizes width of material and saves cost
- Speed is adjustable by alternative-frequency
- Automatic counting, tolerance +/- 1mm, uniform size, controllable length
- Masks were delivered accurately and separately into feeding position of welding machines
- UItrasonic welding, 4 points welding complete in one time
