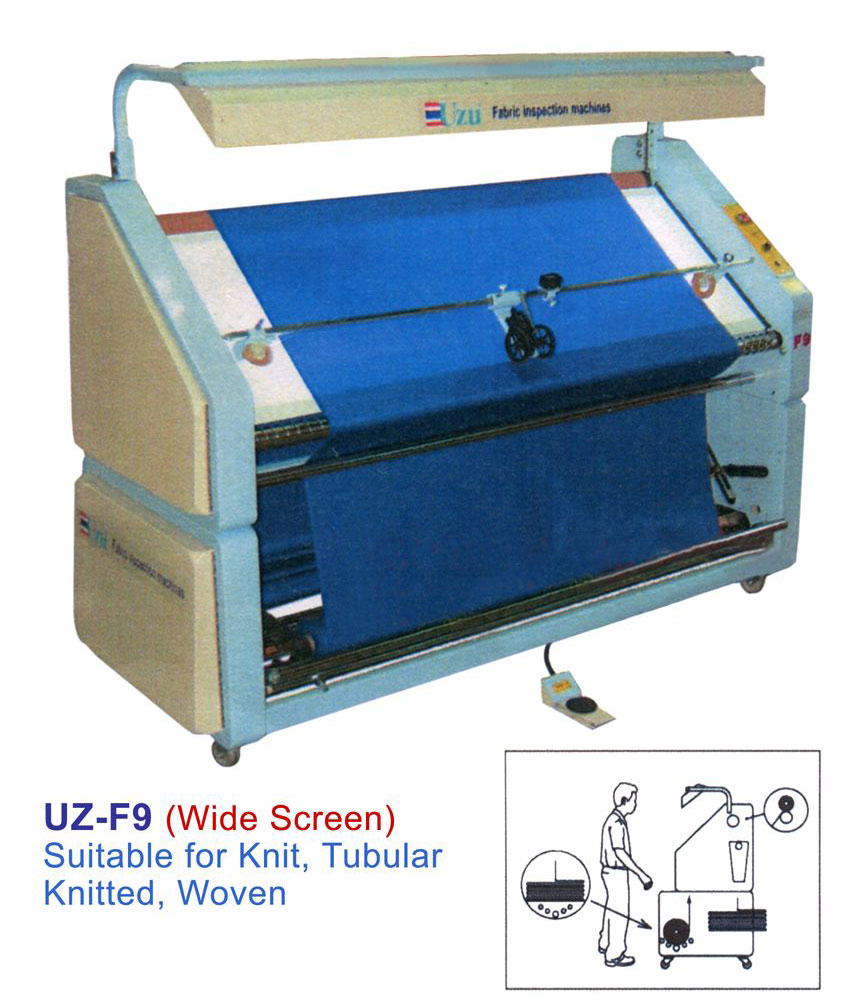

UZ-F9/96"
Fabric inspection machine
Design for multi function inspector.
- Inpectable from roll or fold fabric.
- After inspect, able to keep by roll or fold.
- In the step of keeping by fold, relaxing device will be sway to make fabric loosening.
- Attached with length measuring device and defect counter as standard.
- Able to use with Knit , Woven ,Tubular
Motor
1 Hp/4 PoleFabric width
96″
Inspection board (height)
26″Voltage
1Pha AC 220V / 50 / 60HzSpeed
0-80 yard/min.Dimension (WxLxH)
60 x 280 x 170cm. UZ-F9-72"
Fabric inspection machine
Design for multi function inspector.
- Inpectable from roll or fold fabric.
- After inspect, able to keep by roll or fold.
- In the step of keeping by fold, relaxing device will be sway to make fabric loosening.
- Attached with length measuring device and defect counter as standard.
- Able to use with Knit , Woven ,Tubular
Motor
1 Hp/4 PoleFabric width
72″
Inspection board (height)
26″Voltage
1Pha AC 220V / 50 / 60HzSpeed
0-80 yard/min.Dimension (WxLxH)
120 x 250 x 170cm.
UZ-F28-AS
Fabric Inspection-Winding Machine (Auto Edge Alignment Control)
Features :
- Maximum diameter is 40cm.
- Suitable for woven, nylon, jeans etc.
- Bearing stand for roll fabric.
- Tension and speed are adjustable.
- Equipped with upper, lower light and measurement.
