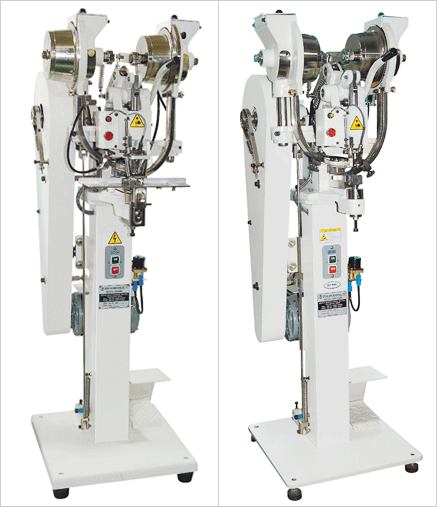

SP600

Snap attaching machine

Spring snap and ring snap are not allowed to be used simultaneously
For example, other snaps cannot be used with goods produced
by spring snap
* Snap applicable to machine can be produced upon the customer’s
requirement.

  1. One machine can work for spring (ring) snap buttons of 12 mm, 13 mm, 14 mm, 15 mm sizes.
  2. Equipped with a punching machine that enables the use of weak chalk
  3. Motor specifications: 1) 220 V. 1P (50/60 HZ). 0.25 KW (main machine)
  4. Motor specifications: 2) 220 V. 1P (50/60 HZ). 0.06 KW (punching machine)
    Dimensions: 500 mm * 400 mm * 1,300 mm × 2 units
  5. Weight: 90 kg × 2 units
