ON-688CD5

Single head needle detector machine

Continuous needle detectors can be used to detect hidden needles in different types of sewing products (such as men, women, children, underwear, kimono, coats, beds, shoes and hats, plush toys , carpets, sanitary products). Broken needles and other iron pieces, etc., can also be used to detect toilet materials such as medicine, food (food, fish, meat, fruit, etc.), zipper of clothing accessories. , button, and non-magnetic Materials such as copper, aluminum, zinc, paper, rubber, chemical industry materials, etc. are mixed with iron pieces.

Needle detector frame

Type 2 probe

Needle detector height

100mm

Capacity

<140W

Voltage

1Pha AC 220V / 50 / 60Hz

Needle detector width

600mm

Detection sensitivity of iron needle

Diameter ɸ1.0mm

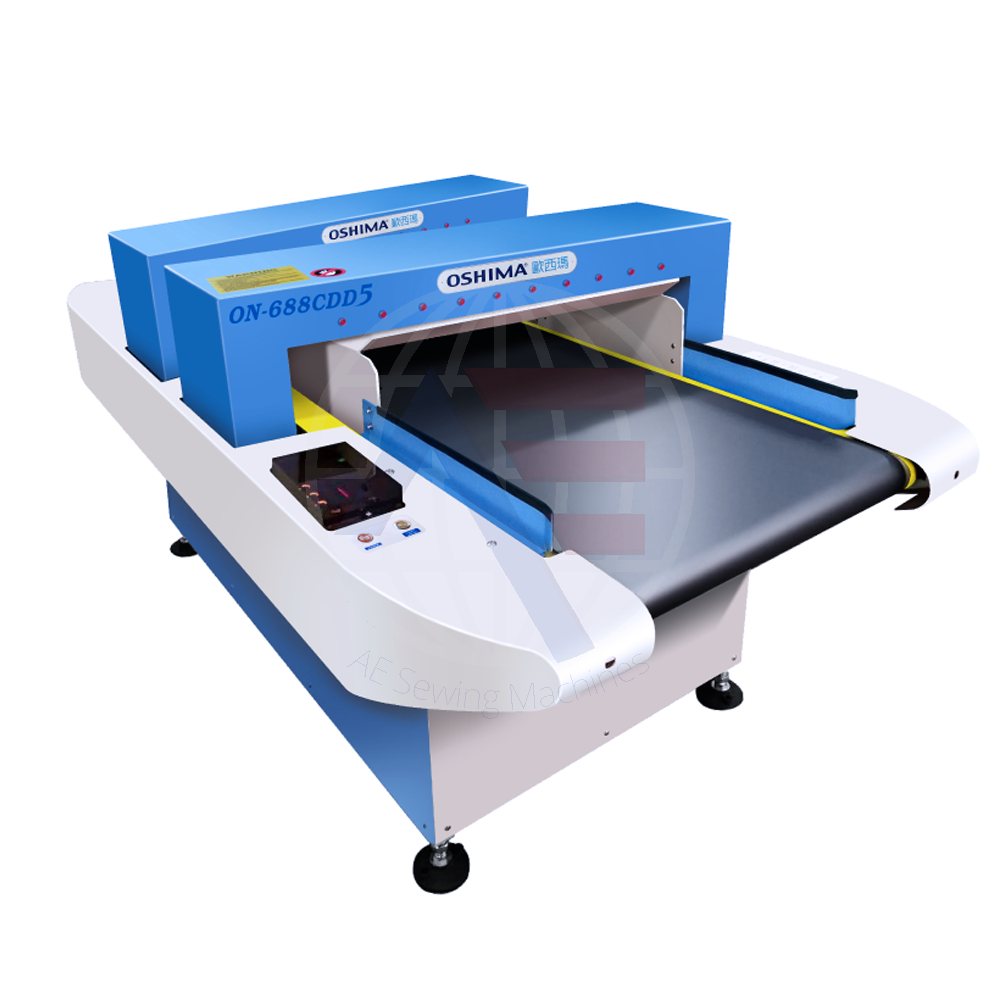

ON-688CDD5

Twin head needle detector , with LCD touch Panel and printer.

Continuous needle detectors can be used to detect hidden needles in different types of sewing products (such as men, women, children, underwear, kimono, coats, beds, shoes and hats, plush toys , carpets, sanitary products). Broken needles and other iron pieces, etc., can also be used to detect toilet materials such as medicine, food (food, fish, meat, fruit, etc.), zipper of clothing accessories. , button, and non-magnetic Materials such as copper, aluminum, zinc, paper, rubber, chemical industry materials, etc. are mixed with iron pieces.

Needle detector frame

Type 2 probe

Needle detector height

100mm

Capacity

<140W

Voltage

1Pha AC 220V / 50 / 60Hz

Needle detector width

600mm

Detection sensitivity of iron needle

Diameter ɸ1.0mm

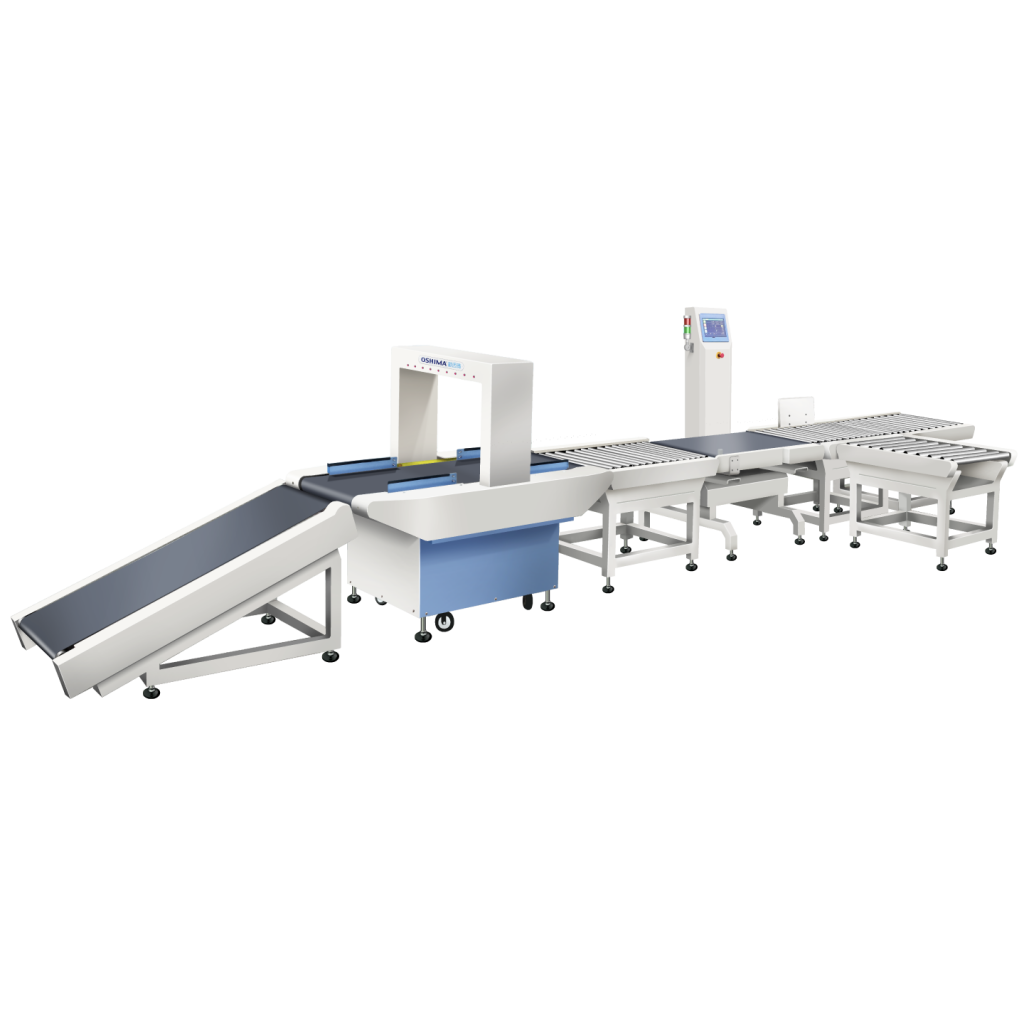

OMW-600 / 800 / 1000

Metal Detection and Check weighing System

Final inspection before the product is shipped are  essential requirements for your business. Inspecting the scissors, paper clips or other metal parts hidden in the carton, and checking whether the shipping package is too heavy or too light. Our combined system has a small footprint and can be easily installed in the existing production line.

Real-time monitoring
o capable of data input & output
o camera and save

Advantages:
o support single and multi-item sorting/packing
o support mixed barcode (size, style etc) scanning
o alarm activation and automatic conveyor reverse on detection

User interface:
o flat panel touch screen
o intuitive and user-friendly
o multilingual interface

Investment cost:
o simple installation and easy to use
o low maintenance costs and cheap replacement parts
o capable of integration with other devices
