OP-1600L

Fusing press machine with logner bottom conveyor belt type
(Fusing Width 1600mm)

Highly efficient, wide continuous fusing machine with long belt. The belts width 160cm. Good pressure up to 5kg/cm^2 and the electronic temperature control assure excellent [even and durable] join of the fabric with fliselin or interlining. The cooling of fused elements stabilizes them immediately and prevents the deformation. The rotary scrapers prevent the interlining clinging to the belts. Heaters power 28 kW, voltage 400V. Fusing time 5-34 sec., maximum temperature 200 Celsius. The compressed air is necessary.

Power Supply

3-Phase(220V)

Rated Output

12KW

Fusing Length

Endless

Rated Output (Motor)

240W

Fusing Width (mm)

1600mm

Air Pressure

0~5kgf/cm²(0~0.5mpa)

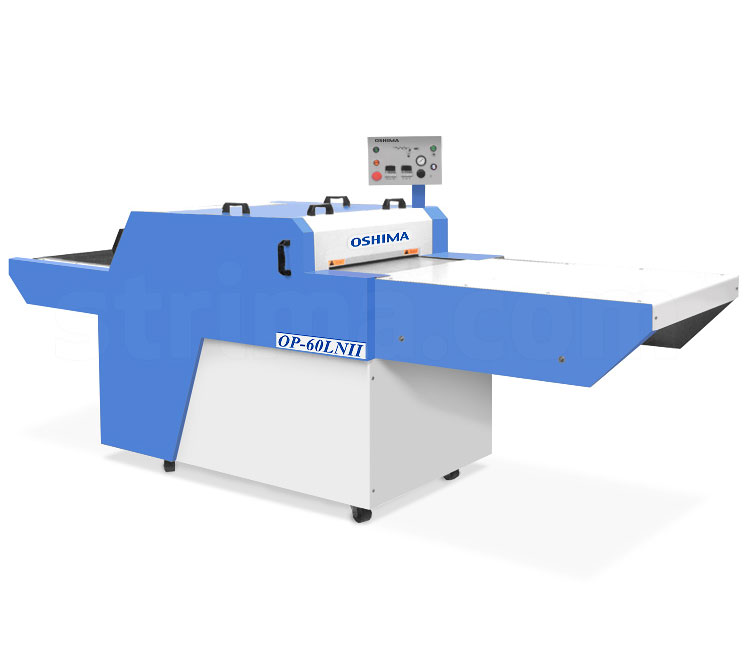

OP-60LNII

Continuous fusing press machine

New generation, highly efficient continuous fusing machines especially designed for uncompromising users. The belts width 60 cm. Powerful pressure up to 6kg/cm^2 and the electronic temperature control (up to 200 °C) assure excellent [smooth and durable] join of the fabric with fliselin or interlining. Laminating is also possible. The super cooling system of fused elements stabilizes them immediately and prevents the deformation. Synchronized work of mechanical scrapers with properly steered compressed air blowing prevent the interlining clinging the belts. Heaters power 7,8 kW, voltage 400 V, fusing time 5-34 sec. Compressed air necessary.

Belts width:

60 cm

Max. pressure:

6 kg/cm2

Fusing Time

5~34secs

Heater power

7.8 kW

Fusing Width (mm)

600mm

Air Pressure

Max.6kg/cm²(0.6Mpa)

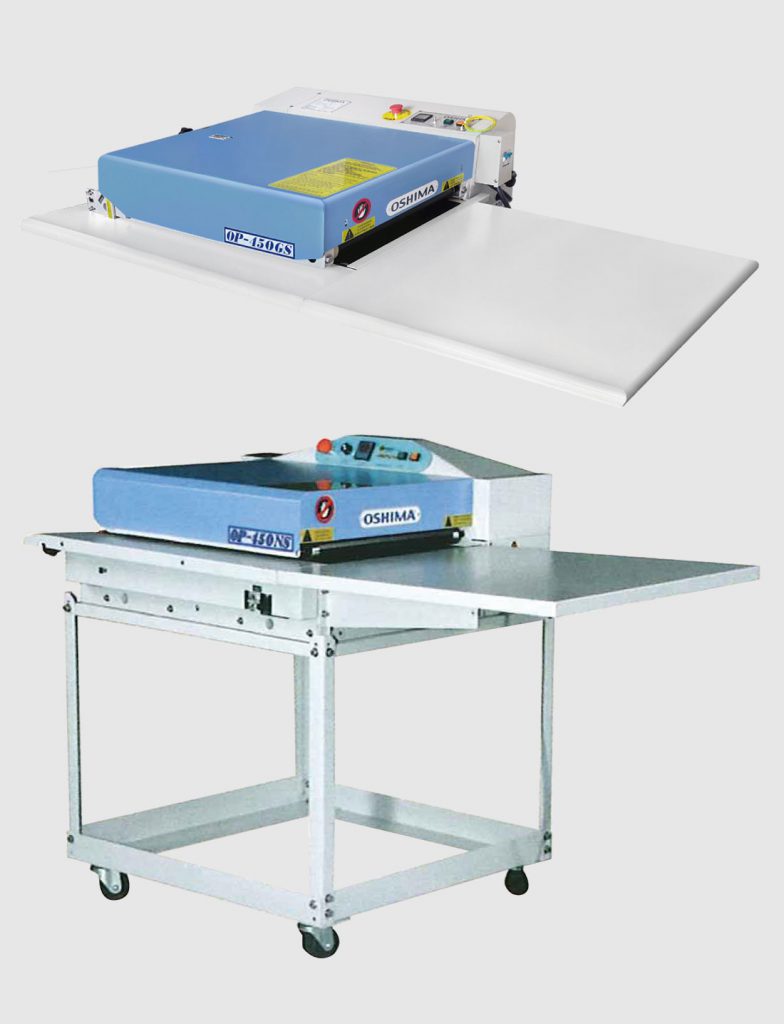

OP- 450GS

Fusing press machine

  1. For the interlining and fabrics fusing.
  2. Shape pocket/attachment. And Auto feeding and collecting PF-01 system.

Power Output

1 Phase,220V

Max. pressure:

1kgf/cm² 0.1MPa

Heating Time

5~34secs

Net Weight

135kg

Heater power

3.6KW

Type of Scraper

Rotary Stripe-off

Belt Upper

460 x 1530 MM

Belt Lower

460 x 1840 MM

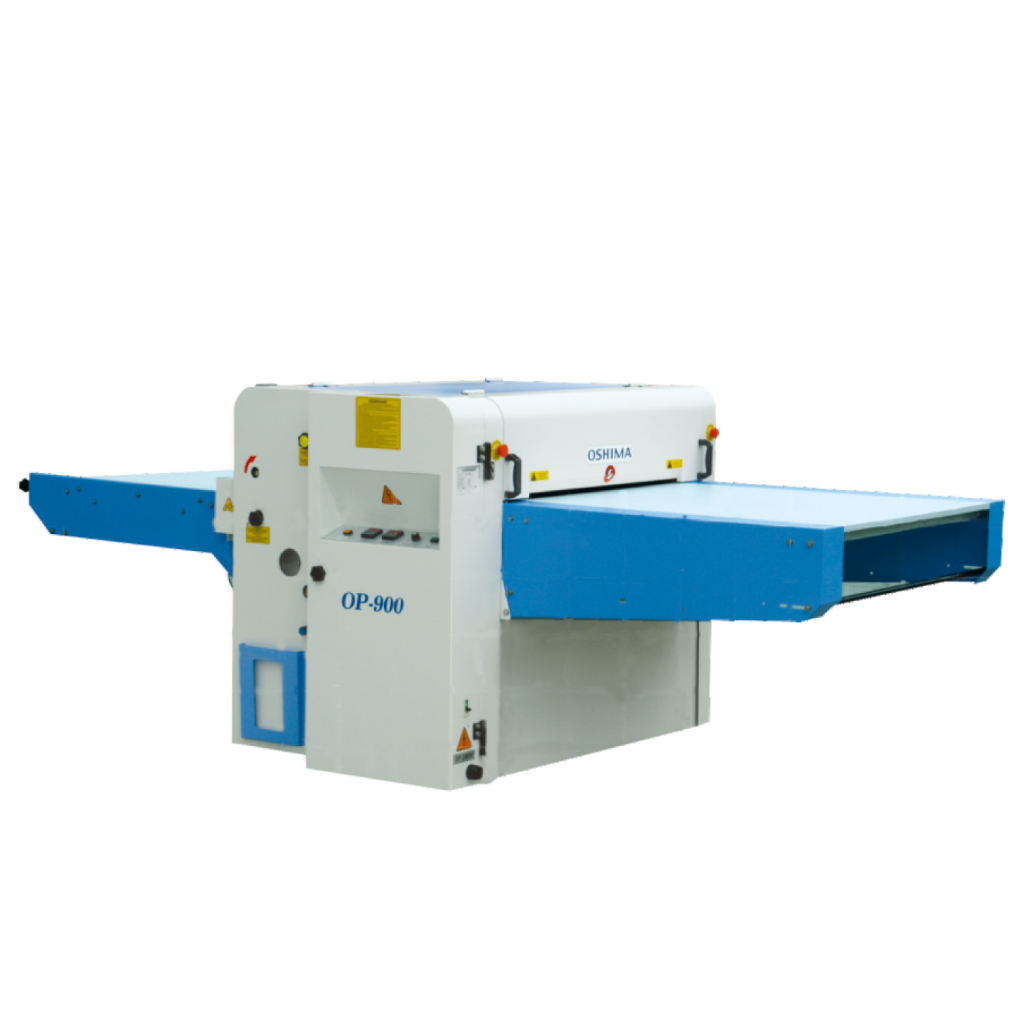

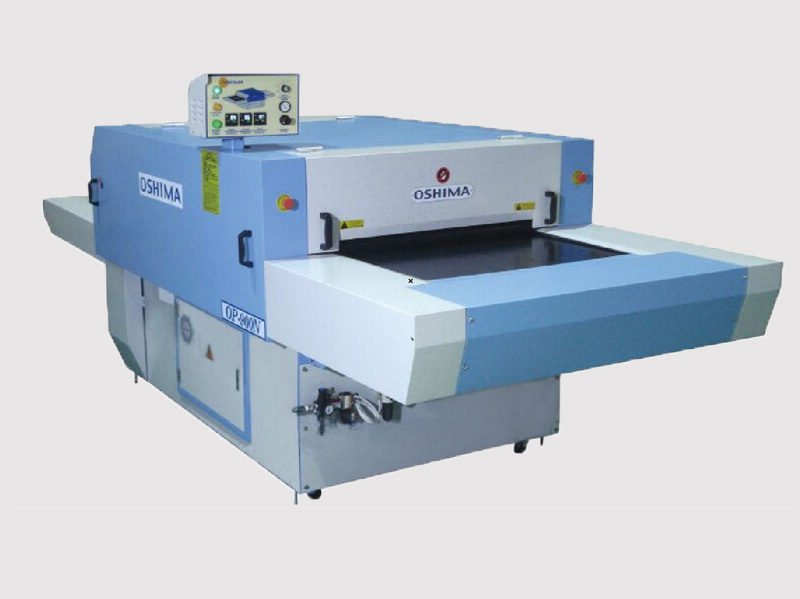

OP- 900

Continuous Fusing Machine

This Continuous Fusing Machine is fitted with a PTFE coated conveyor belt.

It employs a pneumatic cylinder system making sure pressure is applied evenly throughout.

Maximum pressure 6KG.

The machine is equipped with automatic temperature control and can activate an automatic cooling-shutdown function when not in use.

It also employs a six-zone heating system and fitted with an anti-wrinkle roller.

This machine uses a dual-scraper (upper and lower) design to ensure clean removal of the fused laminates from the conveyor belt.

The machine is equipped with movable rollers to make it easier to carry.

Power Output

3P 220V/380V

Max. pressure:

0.2~0.5

Fusing Time

5~30 Sec

Heater power

12

Fusing Width (mm)

900 mm (OP-900A; OP-900LA)

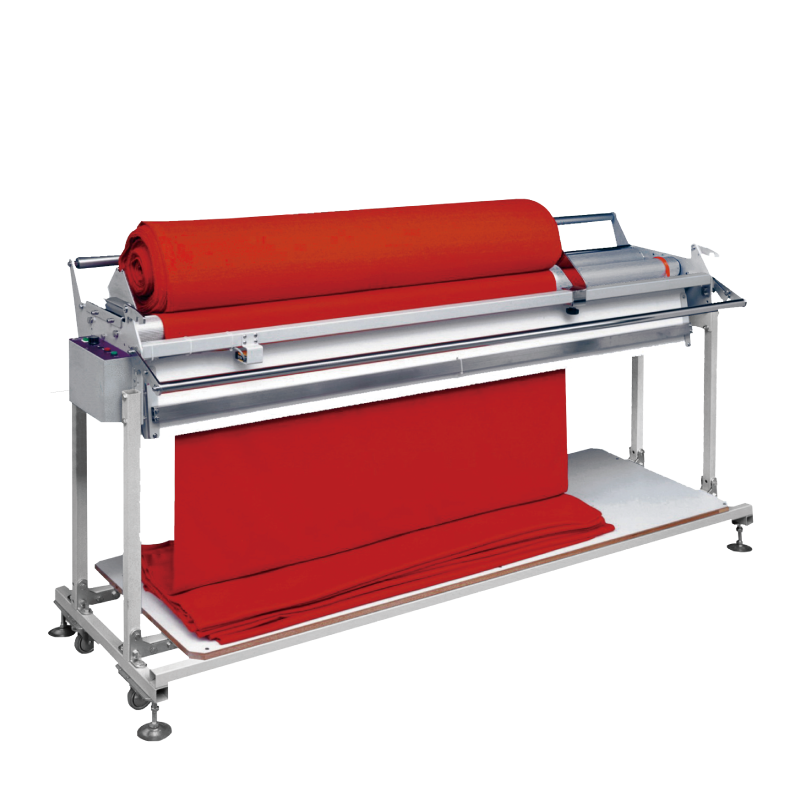

UW2-L

Fabric relaxing machine

Our relaxing machines are engineered to eliminate tension in knit and woven fabrics, the realxing time is shorten to 12-24 hours, saving you space, time and labour. They are suitable for all types of material rolls under 82 inches and can be modified to handle material rolls with larger width and diameter. It contain automatic stop sensor mode and rewinding function. Moveable wheels, easy to carry.

UW-2L is a extra lenght model, UW-2MS is extra width model (suitable for denim fabric)

Power Output

1 Phase,220V

Fabric Weight(Kg)

100

Inspecting Speed(yard/min)

0~80

Net Weight

185/230

Fabric Diameter(mm)

500mm

Width Of Roller(mm/in)

2235/88″

Wagging Width(mm)

400

Dimensions LxWxH (mm)

2650 x 800 x 1200
